Bore Well Compressor Sequential Timer | One Compressor Pump For Upto 16 Bore Well | Multi Bore Well Timer

Q: How many bore wells can one compressor run with the timer?

A single compressor unit can lift water from up to 16 bore wells sequentially. The digital panel diverts compressed air to each bore well one after another based on the times you programme in minutes.

Q: Is the bore well compressor timer a pressure booster?

No. It is not a pressure booster. Compressed air is diverted to each bore well in turn automatically according to the programmed time, so every connected bore well works at full performance.

Q: What compressor size do I need?

It suits 5, 7.5 and 10 HP compressors. A 5 HP compressor lifts water from about 350 ft depth and 7.5 HP up to about 550 ft, with full lifting capacity retained across every connected well.

Q: How much power does the control system use?

The entire compressor timer control system draws only 15 watts and is a maintenance-free setup that runs year after year.

Bore Well Compressor

Bore Wells · One Compressor

15 W

Total Power Used

1.25 L

Litres / Day (20 hr)

5–10 HP

Compressor Range

Bore Well Compressor |
See This Ariticle in Tamil

We start with saying. "One Compressor Can Lift the Water from 16 No. Of Borewells, Can You Believe!", When we making borewells in low ground water level areas where we get low yield of water. So we have to make more number of bore wells to get required water. To lift the water from these borewells more number of Compressor or Submersible Motor have to be errected. It consumes more power and more investment.

To Solve this problem a "Compressor Timer" Designed and marketed by "Thumba Agro Tech.," By using this setup we can lift the water from 16 No Bore Wells Sequentially by using only one compressor unit.

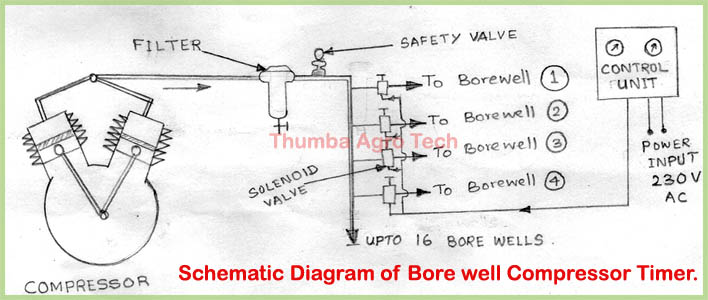

Working Method :

This unit consist of one digital controlled panal and set of solenoid valves. These valves controlled by the panal according to the programming Times in minutes decided by the farmer. We can change the programme times according to the yield of the borewell.

For your Information:

This is not a pressure booster equipment. Other way compressed air diverted to all borewells one after another automatically according to the programmed time.

Features of this Bore Well Compressor Timer :

No Alternative Equipments or Technologies available in Indian Market to the Above Purpose.
By Using One EB Power Connection We can Run Only One Submersible pump Can be Run, No Chance for Second Bore Well. But in this Timer We can Connect One Compressor upto 16 Bore Wells to lift water.
Normally 5 HP Compressor Can Lift Water from 350 Feet Depth, where as 7.5 HP Lifts 550 Feet Depth Maximum. If you divide the cylinders for 2 Nos of Bore Wells the lifting depth decrease to Half of the above capacity. At the same time, in this System we connect both cylinder which passes to all connected bore wells with full working performance.
By using this timer according to the yield of connected bore wells we can Lift 1,25,000 Liter per day( 20 Hour Running) Maximum. Which is enough to Run 5HP Sumberisible Pumpset for 6 Hours.
Complete maintanance Free System which Runs year by years.
Above all The Entire Compressor Timer Control System Consumes only 15 Watt Power.

Technical Detail :

1. Power	:	15 Watt.
2. Solenoid Valve	:	Half Inch Normally Closed.
3. Solenoid Valve	:	Digital 16 Bit Processor.
4. No of Bore Well	:	16 Nos.
5. Suitable Compressor HP	:	5, 7.5, 10 HP

Frequently Asked Questions

How many bore wells can one compressor run with the timer?

A single compressor unit can lift water from up to 16 bore wells sequentially — the digital panel diverts compressed air to each bore well one after another based on the times you programme in minutes.

How much water can it lift per day?

Depending on the yield of the connected bore wells, the system can lift up to 1,25,000 litres per day over a 20-hour run — enough to match roughly 6 hours of a 5 HP submersible pumpset.

Is this a pressure booster?

No. It is not a pressure booster. The compressed air is diverted to each bore well in turn automatically, according to the programmed time — so every connected bore well works at full performance rather than sharing pressure.

What compressor size do I need?

Suitable for 5, 7.5 and 10 HP compressors. A 5 HP compressor lifts water from about 350 ft depth and 7.5 HP up to about 550 ft. Because both cylinders feed all connected bore wells, you keep full lifting capacity across every well.

How much power does the control system use?

The entire compressor timer control system draws only 15 watts — and it is a maintenance-free setup that runs year after year. Ideal for low-yield bore wells in low groundwater areas where drilling more wells is cheaper than running many separate motors.
