| Model | Max Depth | Discharge | Fill 1000L | Units/Month* | Best For |
|---|---|---|---|---|---|
| 1 HP | 200 ft | 100 LPM | 8–12 min | 6 units | Shallow bore |
| 1.5 HP | 400 ft | 85 LPM | 12–16 min | 10 units | Medium depth |
| 2 HP | 180 ft | 155 LPM | 7–8 min | 6 units | High flow, apartments and farm |
| 2 HP SS Pump | 600 ft | 45 LPM | 20–25 min | 18 units | Very deep, dry region bore wells |
*Monthly units for a 4-member family (14,400 litres/month), calculated at an electricity cost of ₹10/unit | All models above: single phase 150–250V, 50Hz, 4.5-inch bore minimum. Special 2.5″ and 3″ diameter models are available for 3″ and 4″ bore wells — see below.
Price: 1 HP single-phase submersible pumps start from ₹15,500. Final price depends on bore well depth, discharge and cable length — get an exact 1 HP / 1.5 HP / 2 HP quote or WhatsApp +91 98433 35703.
For 5-member homes and commercial use. Find your bore well depth to see the HP you need, what it costs to run and the pumpset price.
| Bore Depth | Yield | Water Needed / Day | HP Required | Units / Month | Bill / Month* | Pumpset Price |
|---|---|---|---|---|---|---|
| 100 ft | 2 inch | 1,000 to 5,000 litres | 1 HP | 5 to 10 | ₹50 to ₹100 | ₹14,500 |
| 200 ft | 2 inch | 1,000 to 5,000 litres | 1 HP | 10 to 12 | ₹100 to ₹120 | ₹16,500 |
| 350 ft | 1.5 inch | 1,000 to 5,000 litres | 1.5 HP | 15 to 20 | ₹150 to ₹200 | ₹21,000 |
| 550 ft | 1.5 inch | 1,000 to 5,000 litres | 2 HP | 25 to 30 | ₹250 to ₹300 | ₹28,500 |
| 600 ft | 1 inch | 1,000 to 5,000 litres | 2 HP | 30 to 35 | ₹300 to ₹350 | ₹32,500 |
*Electricity bill calculated at ₹10/unit | Yield = water yield of the bore well, in inches | Price per pumpset in INR.
With our latest SS fabricated pumps. Larger apartment blocks move to three phase supply.
| No. of Homes | Bore Depth | Water Needed / Day | HP Required | EB Connection | Units / Month |
|---|---|---|---|---|---|
| 2 to 4 | 300 ft | 3,000 to 5,000 litres | 2 HP | Single phase | 150 |
| 5 to 10 | 600 ft | 5,000 to 6,000 litres | 2 HP | Single phase | 200 |
| 10 to 20 | 300 ft | 10,000 to 20,000 litres | 5 HP | Three phase | 150 |
| 10 to 20 | 1,000 ft | 10,000 to 20,000 litres | 6 HP | Three phase | 450 |
| 20 to 40 | 600 ft | 20,000 to 50,000 litres | 7.5 HP | Three phase | 600 |
More than 50 homes? The pumpset has to be calculated from the water source, HP, depth of the bore well and the water requirement. Call me on +91 98433 35703 for better pumpset selection.
Modern single-phase submersible pumps have replaced older jet pumps and air-compressor systems for one clear reason: they deliver more water, run quieter, and cost a fraction per month to operate. Thumba's residential pump range has been designed specifically for Tamil Nadu bore wells — handling the voltage fluctuations, depth variations and hard-water conditions common across the state.
Single phase pumpsets are no longer just "1 HP for the house bore well". Here are the newest developments in the sector. Most of them were designed and introduced by our own team.
Higher performance single phase motors with stainless steel fabricated impellers are already on the market, with unbeatable performance and a very long motor life of 15+ years. Why fabricated impellers perform better →
Complete SS pumpsets with 100% stainless steel parts, introduced for coastal sea water use. All bolts and nuts, the thrust pad body and the collets are made from pure SS-304 grade parts to withstand sea water salt and chemicals.
Pumping from up to 300 feet has been achieved with a single phase 1 HP pumpset, for deep well operations where single phase is the only power option.
Sewage and mud removal motors with an SS body and 35 mm solid handling, designed and manufactured by us for special purpose applications. Pumps up to 20,000 litres per hour at a maximum head of 12 metres on just 1 HP. See the sewage mud pump →
A single phase high pressure monoblock designed by us for 60 metre head (6 kg/cm² pressure). It handles high pressure cleaning work as well as 200 ft vertical pumping for 10 to 15 floor apartments. A very rare pump that uses our own simple centrifugal pumping concept with only 1.5 HP.
An extreme high discharge submersible pumpset delivering 60,000 litres per hour at 10 metres head within 2 HP power, available on single phase or three phase supply. We introduced it in 2018 for a 10-acre drip irrigation project at Pondicherry, India. The first of its kind.
High pressure pumpsets for advanced irrigation, introduced by us in 1.5 HP and 2 HP to run RainGuns with 65 to 70 feet radius coverage. Suitable for small farmers with up to 2 acres under RainGun. RainGuns for 1.5–5 HP →
For special purpose bore holes, we make 2.5 inch and 3 inch diameter single phase submersible pumpsets for small 3″ and 4″ bore wells. Working depth 50 to 120 feet, power 0.5 HP to 1.5 HP, for low-depth household use. Delivers 40 to 60 LPM. See the V-2.5 and V-3 models below ↓
Our single phase bore well submersible pumpsets come in 0.5 HP, 1 HP, 1.5 HP and 2 HP. The V-2.5, V-3 and V-4 series are single phase; the V-6 and V-8 series are three phase.
| For | Bore Depth / Height | HP | Capacity |
|---|---|---|---|
| Individual homes | Up to 100 ft | 1 HP | 1,000 LPD |
| Up to 200 ft | 1 HP | 1,000 LPD | |
| Up to 350 ft | 1.5 HP | 65 LPM | |
| Up to 450 ft | 2 HP | 65 LPM | |
| Up to 600 ft | 2 HP | 60 LPM | |
| Apartments | Up to 3 floors | 2 HP | – |
LPD = litres per day | LPM = litres per minute.
V-2.5, single phase. We can supply 2.5 inch small body diameter motors for 3 inch bore wells, with up to 150 feet pumping capacity. This is a very rare case pump, used for sandy bore wells where a low-cost 3 inch casing pipe has been placed for economical bore well construction. The motor pumps up to 2,000 LPH from 100 ft depth and then lifts the water a further 3 to 4 floors, directly to the top of the building.
This motor is particularly suitable for 4 inch bore wells where the inner bore is damaged by weak sandy layers, as happens in particular areas. A 4 inch bore well motor cannot be inserted there, so this is the only option. Even with its lower overall efficiency, this is the pumpset to choose for depths up to 350 feet.
| Model | HP | Max Depth | Discharge | Price |
|---|---|---|---|---|
| V-3 | 1 HP | 350 ft | 2,000 LPH @ 250 ft | ₹21,000 |
| V-3 | 1.5 HP | 450 ft | 2,000 LPH @ 300 ft | ₹25,500 |
Casing pipe erection is the other cost factor, and it is very costly. For example, 6 inch or 7 inch casing pipes for 300 feet cost around ₹60,000 plus erection charges. You can cut this by using 4 inch casing pipes, which cost only ₹15,000, with lower erection charges too.
"You can save 4 times the casing pipe cost in sandy bore wells!"
And you still get the same yield. With no sand filling into the bore well, trouble-free running of the motor is ensured. This is our special pumpset, made to give a solution for damaged sandy bore wells.
Single phase, 220 V, 50 Hz. This is the most recommended pumpset for both residential and agricultural applications. We have more than 1,200 models with various key features, and we divide the V-4 pumpsets by the following application factors.
Up to 100 ft Up to 200 ft Up to 350 ft Up to 450 ft Up to 600 ft
Each depth comes in low, medium and high discharge variants.
Up to 1,000 LPD Up to 2,000 LPD Up to 5,000 LPD Up to 10,000 LPD Up to 30,000 LPD Up to 50,000 LPD 1,00,000 LPD and more
Select your water requirement per day, and make sure it covers your future expansion too.
This is a very important factor. Select your pumpset according to how much you are able to invest in your bore well. For example, a 350 ft bore well needs at least a 1.5 HP or 2 HP motor, depending on your discharge needs. Select as follows:
| Type | Price | Life Span |
|---|---|---|
| Low cost | ₹20,000 | 2 to 3 years |
| Economic | ₹25,000 | 5 to 10 years |
| Normal | ₹27,000 | 10 to 15 years |
| SS pumpset (100% pure) | ₹34,000 | Once in a lifetime purchase. Unlimited rewinding possible |
This is also a very important factor to consider before selecting a pumpset. Based on your cost, performance, life, bore well suitability and local voltage condition, you can select the most suitable material of construction. Many brands in the market make pumpsets with their own special materials, technology and concepts.
We make both normal standard and latest updated versions. In material selection, we use SS-410 for impellers and shafts to give excellent strength, hardness and high torsional rigidity. SS-304 impellers offer superior corrosion resistance against regular ground water and a smooth surface finish that maximises hydraulic efficiency. That is why we decided to supply them for the latest generations.
For your easy understanding:
| Pumpset Type | Motor | Pump | Impeller | Shaft |
|---|---|---|---|---|
| Low cost | Low SS, MS core, aluminium winding | Thin SS tube | Noryl, CI | MS |
| Medium cost | Low SS, copper winding, silicon core | SS tube, gunmetal bearings | Noryl, gunmetal | MS coated |
| Standard ISI | SS-202, silicon core | SS tube, collet type | Solid SS | SS-202 |
| SS pumpset (fabricated is a must) with CI thrust body | SS-304, pure silicon, SS bearing | SS fabricated outer casing, SS-304 collets | SS-304 fabricated | SS-410 |
| 100% SS pumpset fabricated impellers with SS thrust body | SS-304, copper winding | SS-304 (100%) | SS-304 (100%) | SS-410 (pure) |
Share these 6 details with us and we'll recommend the exact model — free of charge:
Not sure? Email info@thumbaagrotech.com with your bore well details — we'll reply within 24 hours with the right model and price.
We have more than 120 models of single phase submersible pumpsets. Every model has its own special character in pumping capacity, material of construction, technology used, head, discharge and cost.
From my 23 years of experience in the pumping sector: do not erect a single phase submersible pumpset in a bore well deeper than 600 feet. We do have a 1,000 ft, 4 HP single phase pumpset model, but voltage problems appear in every area when running 1,000 ft motors, and they need special step-up units.
Just imagine a single phase 220 V supply with 1,000 feet of insulated submersible cable (even when 6 sq.mm cable is used). Transmission losses affect motor performance. If you give 210 V at the starter, only about 160 V finally reaches the motor. How can it pump from 1,000 feet? In this case, select a three phase motor of the same power for that bore well.
Please don't make a mistake here. It will cost you your money and your peace of mind. Consult your nearest pump specialist to select the right pump, or call me on +91 98433 35703 for exact pumpset selection.
Also note: single phase motors above 2 HP do not give good performance or long life.
— Nallamuthu, CEO, Thumba Agro Technologies
For the full selection process — depth, water quality, the 10 details a pump needs to be designed around and why HP alone is the wrong measure — read our guide: How to Select Your Bore Well Pump Set →
Single phase, 220 V, 50 Hz 3 kW Transformer type 3 steps × 30 V = up to 90 V boost
This is our own concept in voltage boosting, for places where low voltage is a big issue. It is a heavy duty, transformer type, 3 step voltage booster. Each step adds 30 V (AC 220 V model), so the voltage can be raised by up to 90 V on the 3rd step.
Please note: this is a voltage booster, not a current (load) increasing device. It is very well suited to low voltage areas and to sites very far from the distribution transformer.
We can: 1,000 ft drinking water for a 100-home village
For a high-risk single phase 1,000 feet motor installation in an extreme drought area, where single phase is the only option, we can give a solution: our 4 HP single phase pumpset with 1,000 feet pumping capacity, run with the help of our step up stabilizer unit. It is meant for essential drinking water for a 100-home community village in remote areas.
We can do the complete project installation for a 1,000 feet bore well pumpset with a single phase motor.
| Project Specification | |
|---|---|
| Power | 4 HP |
| Phase | Single phase |
| Volts | 220 V AC |
| Pumpset | 4 HP, 60 stage, SS fabricated, copper winding |
| Ampere | 48 A max |
| Submersible cable | 3 core, 6 sq.mm copper |
| Total pumping capacity | 1,180 feet |
| Delivery size | 1.25 inch (40 mm) |
| Column pipe | UPVC, 40 kg/cm² |
| Booster unit | Step up, transformer type, 60 A heavy duty, 3 step |
| Depth | Pump Discharge |
|---|---|
| 600 ft | 72 LPM |
| 750 ft | 60 LPM |
| 900 ft | 30 LPM |
| 1,000 ft | 20 LPM |
| 1,180 ft | 0 LPM (zero) |
Trust matters
We never recommend this motor for all areas. Three phase is always better in this case. But if only single phase is available in your area and you have an essential drinking water requirement, you can select this pump. Or call +91 98433 35703 for other options for the same bore well.
Facing low voltage at your bore well? Call +91 98433 35703 with your line voltage, bore depth and motor HP.
| Pump Type | Capacity | Price |
|---|---|---|
| Residential pump set | 1 HP — 200 ft depth | ₹15,500 |
| Residential SS pump set (complete) | 1 HP — 200 ft depth | ₹24,500 |
| Agriculture horizontal pump set | 5 HP | ₹32,500 |
| Agriculture horizontal SS body (complete) | 5 HP | ₹38,500 |
| Bore well SS — agriculture & industrial | 5 HP — 300 ft depth | ₹42,500 – ₹1,10,000 |
Tell us your bore well depth — we'll recommend the exact model for your needs.
Get a Free Quote WhatsApp Us +91 98433 35703Thumba single-phase submersible pumps start from ₹15,500 for the 1 HP model. The exact price depends on your bore well depth (total head), the discharge rating you need and the cable length. Call or WhatsApp +91 98433 35703 with your bore well depth for an exact 1 HP, 1.5 HP or 2 HP quote.
A Thumba 1 HP single-phase submersible pump delivers up to 100 litres per minute — about 6,000 litres per hour — at a 200 ft bore well, filling a 1000-litre tank in 8 to 12 minutes. Discharge reduces gradually as the bore well depth increases.
For most urban homes with a bore well up to 200 ft, a 1 HP single-phase pump (100 LPM) is ideal. For a 400–500 ft bore well choose 1.5 HP, and for very deep 550 ft bores or higher flow (apartments, small farms) choose 2 HP. All Thumba models run on 150–250 V single phase and need only a 4.5-inch bore well.
Our models cover 110 ft to 600 ft. The 1HP model suits up to 200 ft; the 1.5HP covers up to 500 ft; the 2HP reaches up to 600 ft. Share your bore well depth and we'll recommend the right model.
Very little. A 1HP Thumba pump takes about 4 to 6 hours a month to pump 14,400 litres (a 4-member family's monthly need) from a 200 ft bore well, depending on the depth at which water is available. At about 1 unit per hour that is around 6 units a month, or roughly ₹60 per month at ₹10/unit, for your entire family's water.
The 1HP 200ft model fills a 1000L tank in 8–12 minutes. The 2HP 180ft model fills it in just 6–8 minutes.
Our standard 1HP–2HP models need a minimum 4.5-inch bore well casing, and most modern bore wells in Tamil Nadu are 5–6 inch. For small 3-inch and 4-inch bore wells we make special 2.5-inch and 3-inch diameter single phase pumpsets, 0.5 HP to 1.5 HP, for 50 to 120 ft working depth, delivering 40 to 60 LPM.
Yes — all models operate on 150V to 250V single phase. For areas with extreme voltage drops below 140V, we supply a stabilizer that maintains 200V+ input.
Yes. We supply, install and service across Tamil Nadu. Contact us with your bore well details for a site-specific recommendation and installation quote.
We do not recommend it. From 23 years in the pumping sector, our advice is not to erect a single phase submersible pumpset in a bore well deeper than 600 feet. On a 1,000 ft cable, voltage losses mean 210 V at the starter can reach the motor as only about 160 V, which is not enough to pump from that depth. Choose a three phase motor of the same power instead. Single phase motors above 2 HP also do not give good performance or life. Call +91 98433 35703 for exact pumpset selection.
Yes. For small 3-inch and 4-inch bore wells we make special purpose 2.5-inch and 3-inch diameter single phase submersible pumpsets, 0.5 HP to 1.5 HP, for a working depth of 50 to 120 feet. They deliver 40 to 60 litres per minute and suit low-depth household use.

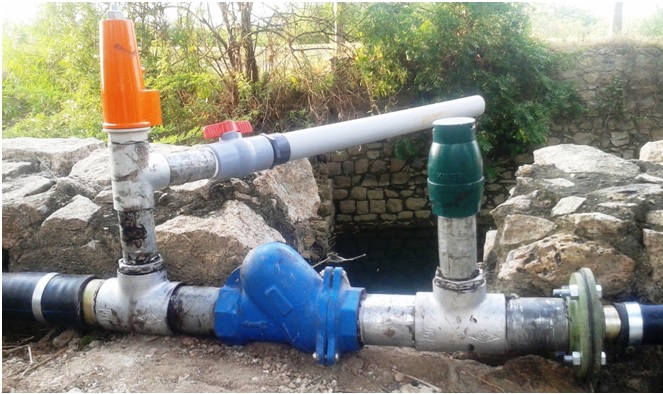

Your submersible pump is the power source — pair it with the right irrigation system for your farm size.
Tell us your bore well depth, HP requirement and location — we'll recommend the right pump and give you a price.
