Waste water management is one of the most challenging tasks in dairy farming — it consumes significant labour and time. Thumba's submersible sewage mud pump is purpose-built for this application. It handles semi-solids up to 50 mm diameter and pumps slurry up to 1000 feet — directly to biogas plants, compost pits or field irrigation.
Using our specially designed impeller, semi-solids up to 40 mm diameter and fibre particles pump out without jamming. Solid materials never contact the impeller directly — eliminating the most common cause of pump failure on dairy farms.
| 1. Power | : | Single Phase 1 HP |
| 2. Motor | : | Submersible Type |
| 3. Discharge | : | 1200 LPH |
| 4. Total Head | : | 12 Metre Max |
| 5. Pumping Distance | : | Up to 1000 feet at 20 feet elevation |
| 6. Solid Handling Capacity | : | 20 mm to 50 mm |
| 7. Impeller Used | : | U Type or Helical |
| 8. Motor Protection | : | Dry Run, Over Heat, Impeller Lock |
| 9. Seal Used | : | Oil Immersed Carborundum |
| 10. Outlet Delivery | : | 2 Inch |

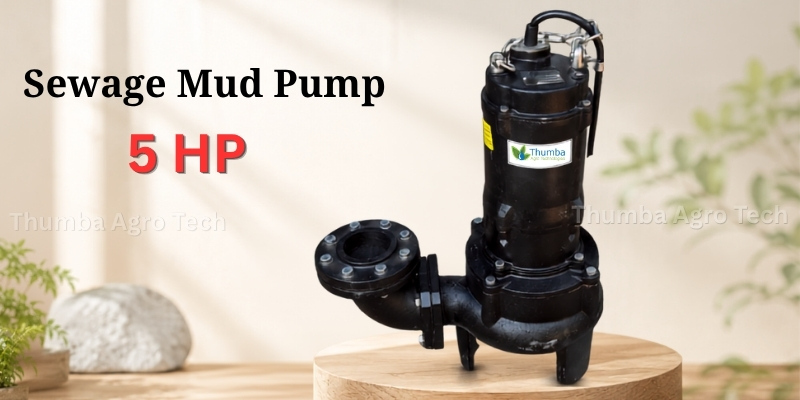

For large dairy farms with higher volumes of slurry and longer pipeline runs, we offer a 5 HP heavy-duty sewage mud pump. Handles higher discharge rates and larger solid particles over greater distances. Suitable for farms with 100+ animals or biogas plants located far from the shed.
Thumba dairy sewage mud pump prices start from ₹15,000 for the standard 1HP model. Final price depends on accessories and delivery location. Call us on +91 98433 35703 or WhatsApp for current pricing.
Yes. The pump uses a specially designed U-type or helical impeller that handles semi-solids up to 50 mm diameter — including hay, straw fibres and thick dung slurry — without jamming. Solid materials never contact the impeller directly, which eliminates the most common failure mode of ordinary pumps on dairy farms.
Up to 1000 feet (300 metres) at 20 feet elevation through 2–2.5 inch PVC or HDPE pipe. It pumps directly to a biogas plant, compost pit or field irrigation channel without needing a separate transfer pump.
The pump outlet is 2 inch. Use 2 inch or 2.5 inch PVC or HDPE pipe for the discharge line. For runs above 500 feet, 2.5 inch pipe is recommended to reduce friction loss.
A dung cleaning pump is a high-pressure washer — it uses a powerful water jet to wash the shed floor and animals. A sewage mud pump is a submersible transfer pump that collects the resulting slurry and waste water and pumps it away to a biogas plant or compost pit. Both are used together for complete dairy waste management.
Yes. The motor is protected against dry run, overheating and impeller lock. The oil-immersed carborundum seal gives long service life in abrasive slurry. If the pump runs dry or the impeller jams, the built-in protection cuts power to prevent motor burnout.
Tell us your shed size and waste water output — we'll confirm the right model and give you a quote within 24 hours.
