Two Dust Suppression Systems · 300+ Mining Industries · Across India Since 2004
Catch the dust in the air it is standing in — before it reaches anyone else's.
Dust is a major issue in air pollution, earth pollution and water pollution alike. Once it is airborne it does not stay in the air — it settles onto land and into water, well beyond the boundary of the site that produced it. The main causes are vehicle mobility, mining activity and excessive wind velocity.
Each of those produces dust in a different place and in a different way, which is why a single approach rarely covers a whole site. A properly matched dust suppression system has to control dust movement — or the mixing of dust with atmospheric air — at the point it is generated.
We have designed two types of dust suppression system, already erected in 300+ mining industries all over India since 2004. Most sites need both.
More than 85% of dust is controlled by our own designed mist spray nozzles, using our water mist technology. The other 15% is heavy enough to drop out of the air within about 20 feet of travel under its own weight — so between the two, very little leaves the machine.

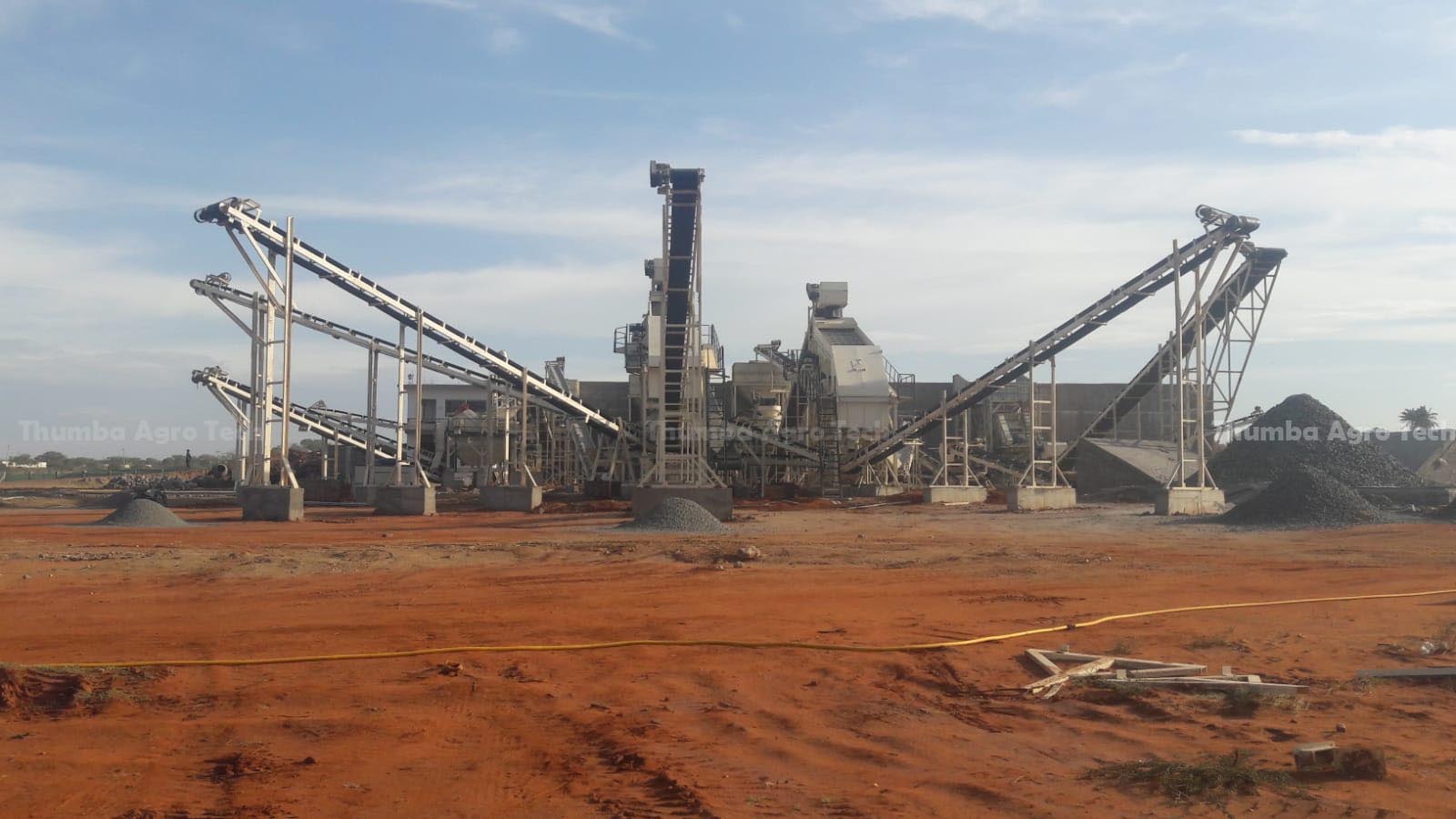

Our misting systems capture airborne dust particles in the space around the machine, before they can migrate into the surrounding environment.

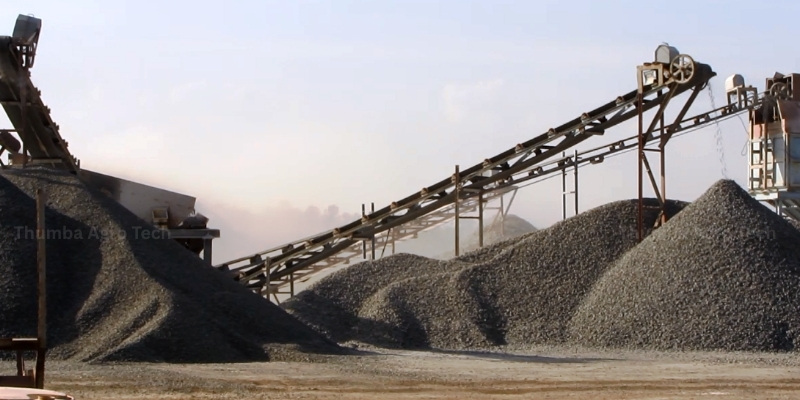

As a piece of high class liquid engineering, we designed a high pressure RainGun system for stock yards and vehicle-running roads. Based on your stock area or road length we select the suitable power pumpset and pipeline diameters.
A RainGun generates real back force, so we provide high strength concrete or PVC concrete pillars at spacings compatible with the system — the mounting is part of the design, not an afterthought.
All projects are customised to your requirements and model selection only. No two crushers, quarries or stock yards have the same layout, tonnage or wind exposure — so we size every system to the site rather than selling a standard package.
| Machine Side Dust Control | RainGun Dust Suppression | |
|---|---|---|
| Controls dust from | Crushing and material handling at the machine | Haul roads, vehicle movement and stock yards |
| Technology | Own-designed mist spray nozzles, water mist technology | High pressure RainGuns on engineered pillar mountings |
| Effectiveness | 85%+ captured; remaining 15% settles within ~20 ft | Sized to cover the full stock area or road length |
| Power | 1 HP own-make high pressure motor | Own-make 10 HP submersible high pressure pumpset |
| Plant capacity | Any size up to 200 TPH | Selected from stock area or road length |
| Water use | 4,000–8,000 litres per 16-hour running day | Varies with area, model and cycle |
| Range of models | Nozzle layout designed per machine | 1″ to 2.5″ RainGuns · 70 to 1600 LPM |
Most working sites run both: misting where the dust is created, RainGuns where it is carried.
Six regions, documented from our own project records — crushers, quarries and stock yards, from Coimbatore in 2004 to Rajasthan and Hyderabad.
More industrial dust control projects are being documented. Customer names, locations and project details are shared from Thumba Agro Technologies' own project records, with permission. To request a correction or removal, contact info@thumbaagrotech.com.
Five things account for most of it: mine blasting, blue metal movement, crushing of mining materials, vehicle movement across the site, and wind velocity above 15 km/hr lifting material off stock yards. Dust is not only an air pollution problem — it settles into soil and water too, which is why it has to be controlled where it is generated rather than after it has spread.
More than 85% is captured by our own designed mist spray nozzles using our water mist technology. The remaining 15% is heavy enough that it drops out of the air within about 20 feet of travel under its own weight. The mist captures airborne particles in the space around the machine before they can migrate into the surrounding environment.
Typically 4,000 to 8,000 litres for a 16-hour plant running day. The actual figure depends on stone hardness and on climatic conditions — rain and wind velocity both change how much misting a site needs.
Only 1 HP. We use our own make high pressure motor, and a single 1 HP unit serves mining industries of any size up to 200 TPH capacity. The performance comes from nozzle design and water mist technology rather than from raw pumping power, which is what keeps the running cost low.
We have many models from 1 inch to 2.5 inches, discharging from 70 LPM to 1600 LPM depending on motor capacity and the area to be covered. For almost all projects we use our own make 10 HP submersible high pressure pumpset, which has given 100% successful performance. Pumpset and pipeline diameter are selected from your stock area or road length.
Yes. A RainGun generates significant back force, so we provide high strength concrete or PVC concrete pillars at spacings compatible with the system. On a working site with vehicle traffic and blasting vibration, the mounting is as much a part of the design as the gun itself.
We supply a high discharge stainless steel submersible pumpset of 20 to 30 HP, delivering 60,000 litres per hour with 200 feet of vertical pumping capacity. It is wear resistant beyond any pump in the market for dirty water, and comes with a special guard protecting the motor from everyday blasting. Two were specially designed and erected in Madurai region quarries handling 10 lakh litres a day through the rainy season.
It has to, in a water-scarce region. The crusher owners' association we work with in the Coimbatore region operates in a heavy water shortage area and runs a separate water tanker lorry bringing waste salt water from nearby sources. Systems for sites like that are designed around the water actually available rather than assuming a clean supply.
Your plant capacity in TPH, your stock area or road length, and your water source. We will size the system — machine side, RainGun, or both — and quote against your site, not a catalogue.
